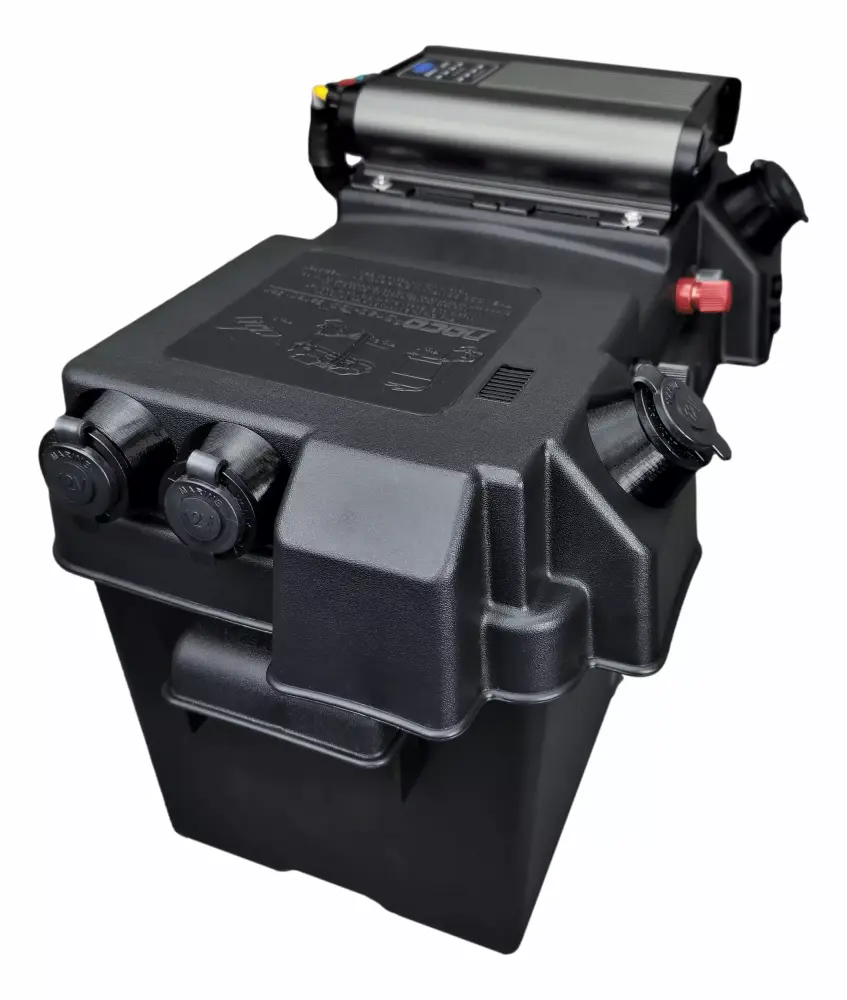

Overlanding Solar Generator Battery Box for 12V AGM SLA Lithium Batteries

Designed to handle the most rugged environments. our Overlanding Solar Generator is perfect for your next adventure!

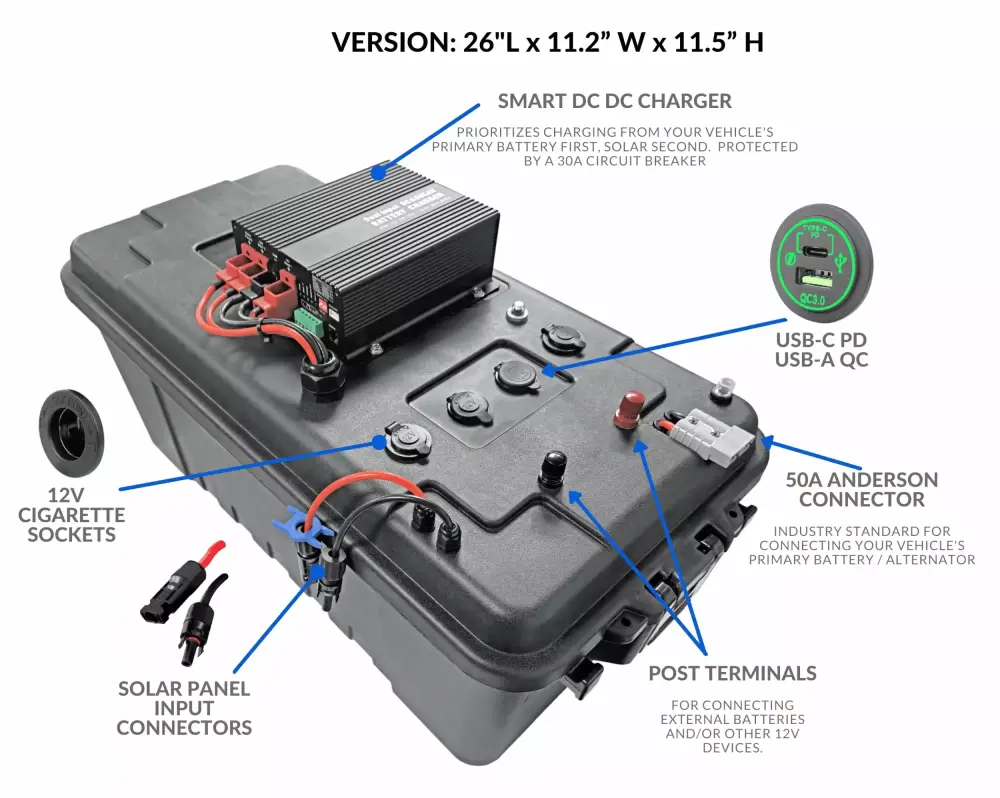

• Includes a DC-DC dual charge controller with solar MPPT input as well as vehicle alternator input
• DUAL INPUT: Priority charges from the vehicle battery/alternator. and second priority from solar panel. no relay or switching required.
• Direct truck/vehicle alternator input – 50A Anderson connector
• Inputs:
• 1 x Pair standard solar panel input connectors (MC4 compatible)
• 1x 12V Anderson Alternator input/output connector protected by a 50A circuit breaker
• 1 x Pair input/output heavy duty and universal post terminals for connecting wall charger (optional). external batteries or devices
• Battery hookup cables (with 3/8 ring terminals)
• Outputs:
• 1x 12V Anderson Alternator input/output connector protected by a 50A circuit breaker
• 3 x 12V cigarette sockets protected by a 30A circuit breaker
• 1 x Pair input/output heavy duty and universal post terminals for connecting wall charger (optional). external batteries or devices
• (1) USB-C PD & (1) USB-A QC 3.0:
  18W Max. Output Power ([email protected]. 9V@2A. [email protected])
  Supports DCP (BC1.2. Apple. Samsung)
  Supports Qualcomm Quick Charge Protocol QC2.0 and QC3.0
  Supports Samsung Fast Charge Protocol AFC
• 100% compatible with LiFePO4. 3S (12.6V) Lithium batteries. SLA. lead acid. and AGM.
• Red and black post terminals connect directly to the auxiliary battery for connecting external batteries. inverters. and other devices.
• Solar generator assembled and quality checked in USA.
• Warranty: 5 years

Specifications:

• Solar input voltage: 16.0 – 50 V DC
• Max charging current: 20A / 30A / 40A
• Battery chemistry: LiFePO4. 3S Lithium (12.6V). AGM/Gel. Lead Acid. SLA
• Overall dimensions:
• Small: 18L x 11W x 12-1/4H
• Large: 30L x 14-1/4W x 14-3/4H
• Internal dimensions (battery space):
• Small: 14L x 7-1/8W x 9-5/8H
• Large: 26L x 11-1/4 W x 11-1/2 H

Downloads:

DC DC Charger Manual

Overlanding Solar Generator Battery Box for 12V AGM. SLA. or Lithium Batteries
