What is this
The silver color synchronous wheel is made of aluminum alloy with a high finish. Used in conjunction with timing belts. realize synchronous transmission and transfer project smoothly. Widely used in mechanical transmission such as 3D printers. drilling machines. milling machines. gear machines. CNC lathes. etc.
Are there any advantages of the product
The transmission is accurate and stable with high efficiency. there is no sliding when working. it has the functions of buffering and damping. low noise. convenient maintenance. and no lubrication. Has a large power transmission range. It can be used for long-distance transmission.
How to use it
There are two 90-degree countersunk screw holes on the tooth surface. which can be fixed by tightening the screws.
What should I notice
Tips: Please check the specifications before ordering.

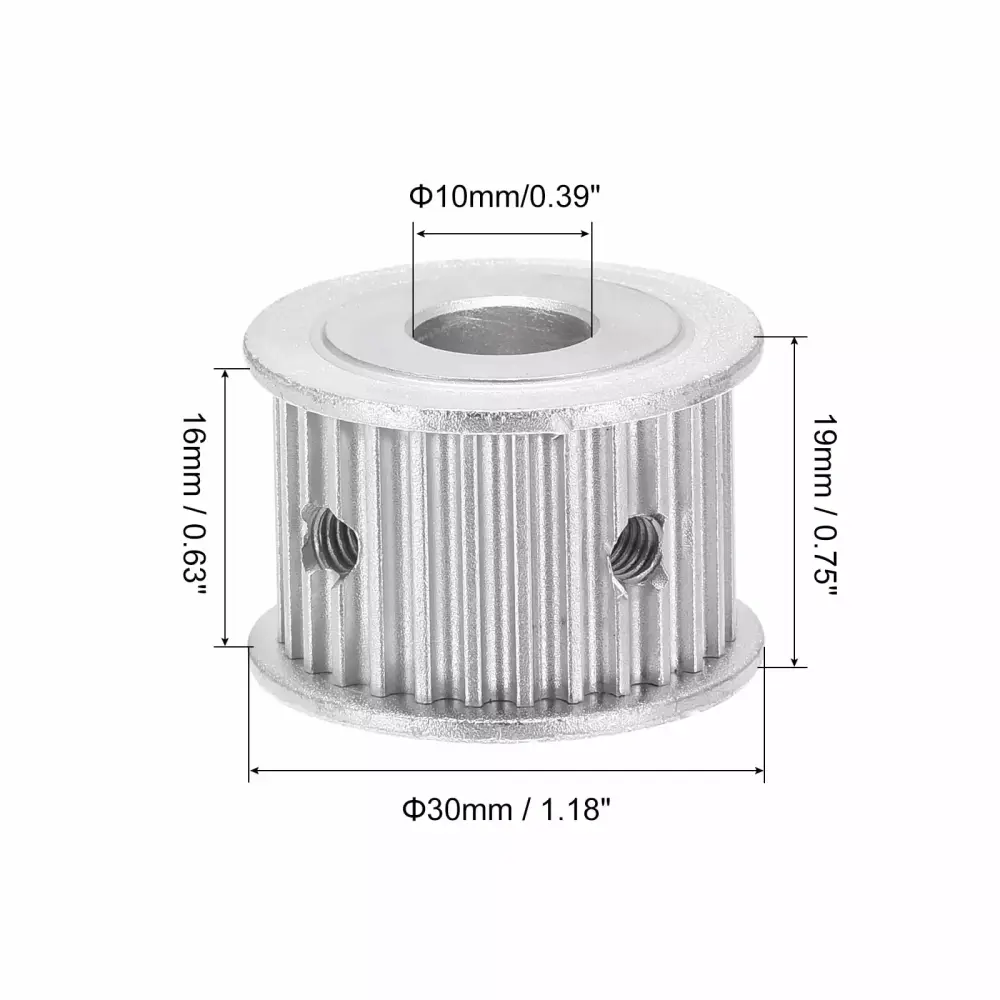

- Package Content:
- 1pcs x Timing Pulley Wheel; 2 x Screw;
- Teeth: 28;
- Pitch: 3mm/0.12inch;
- Bore Diameter: 10mm/0.39inch;
- Max Diameter: 30mm/1.18inch;
- Total Height: 19mm/0.75inch;
- Slot Width: 16mm/0.63inch;
- Shaft Hole Shape: Round
Specifications
| Brand | Uxcell |
| Assembled Product Dimensions (L x W x H) | 5.46 x 3.90 x 0.98 Inches |
