800W Micro Solar Intelligent Wifi Inverter Grid-Connected Pure Sine Wave MPPT IP65 EU Plug Solar Converter

Feature:
*Single independents input (MPPT)
*Standard photovoltaic input port. simple and safe connection
*Integrated AC output port
*Island protection function <10 milliseconds. the inverter automatically stops output
*Built-in WIFI communication. mobile APP monitoring
*Automatic identification of global power grid voltage/frequency
*Super fast natural heat dissipation
*Adaptable to various weather conditions
*IP65 waterproof rating
*Built-in imported waterproof rubber ring
*TUV photovoltaic waterproof connector
*Stainless steel nut
*Aluminum alloy shell can better protect the inverter and extend the service life of the inverter

Specification:
Model: MAYSUN800W
Photovoltaic input (DC. PV)
Number of photovoltaic connectors at the input end: 2 set
MPPT maximum power point tracking voltage range: 28V-55V
Working voltage range: 20V-60V
Maximum tributary input voltage: 60V
Starting voltage: 20V
Maximum DC input current: 2*13.33A
AC output (AC)
Single-phase grid type: 120V or 230V
Rated output power: 760W
Maximum output power: 800W
Rated AC current: @120VAC: 6.33A / @230VAC: 3.3A
Rated AC voltage: 120VAC/230VAC
Output voltage range: @120VAC: 80V-160V/@230VAC: 180V-280V
Rated AC frequency: 50Hz/60Hz
Output frequency range: @50Hz: 47.5Hz-52.5Hz/@60Hz: 57.5Hz-62.5Hz
Output power factor: >0.99
Output current total harmonic distortion rate: THD <5%
efficiency
Maximum conversion efficiency: 95%
CEC weighted efficiency: @120VAC: 92.5%/@230VAC: 93.5%
MPPT tracking efficiency: 99.9%
Night loss: <700mW
Mechanical data
Working environment temperature: -40 to 65
Storage environment temperature: -40 to 85

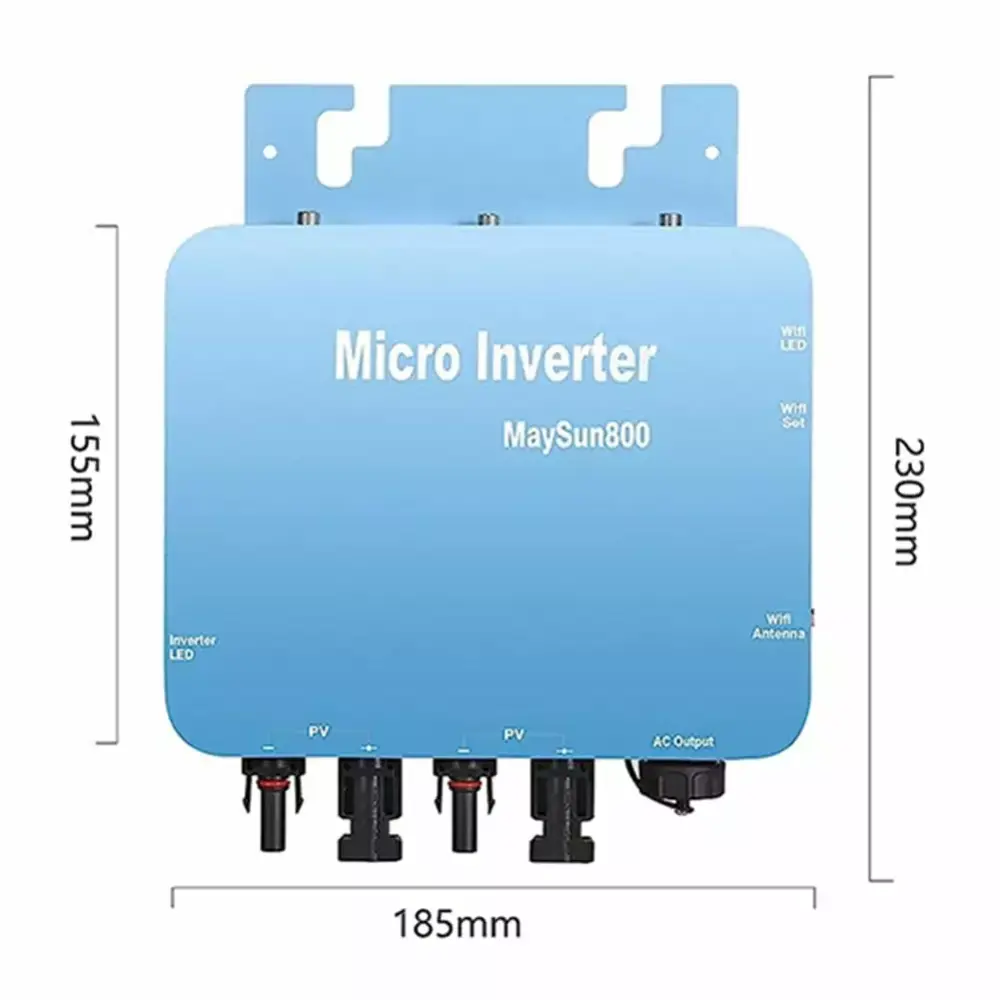

Machine size (length width height): 18cm x 20.5cm x 4cm
Net weight: 1.22kg
Maximum current of AC cable: 20A
Protection level: IP65
Cooling method: natural cooling
Other features
Communication method: WIFI wireless communication (cloud monitoring)
Isolation characteristics: high frequency transformer isolation
Comprehensive grounding: The PE end of the AC cable is the grounding wire of the device. and there is no other grounding port.
Protection methods: islanding protection. voltage protection. frequency protection. temperature protection. current protection. etc.
Design standards: CE. etc.

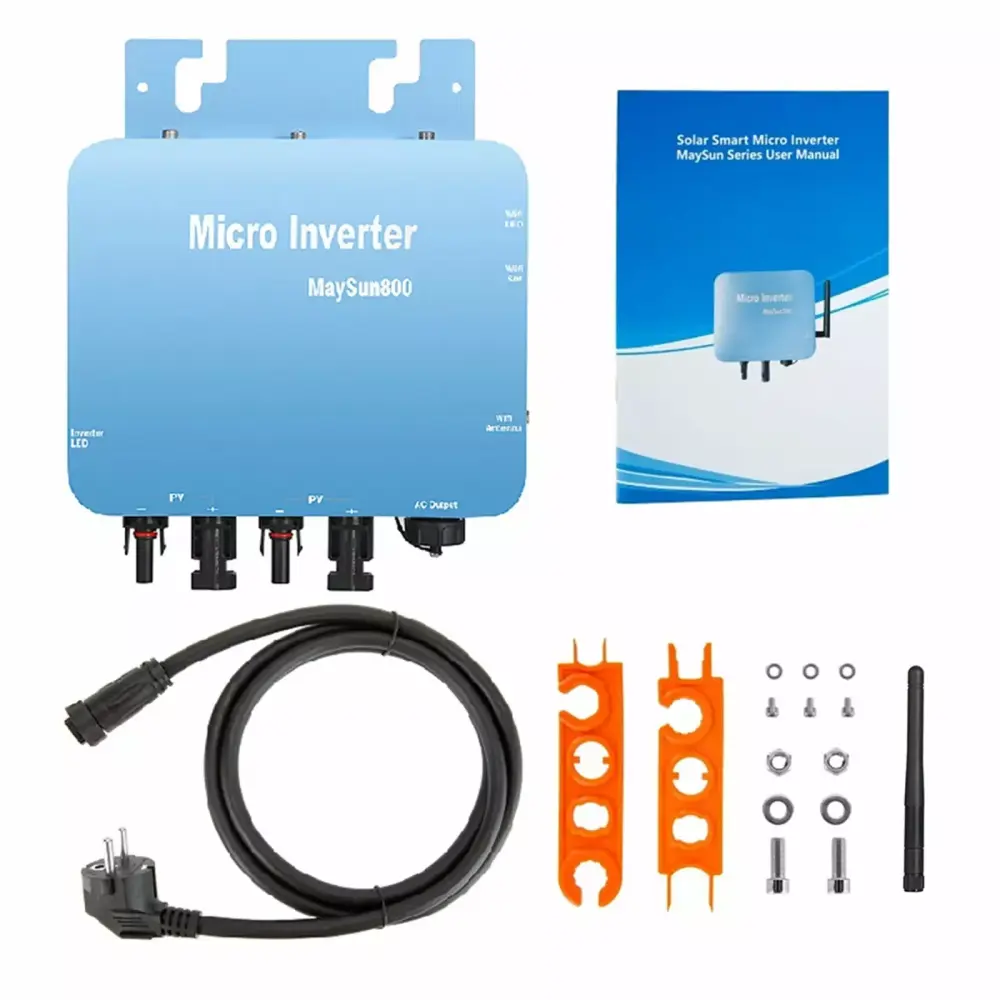

Packing list:
1*inverter
1*power cord

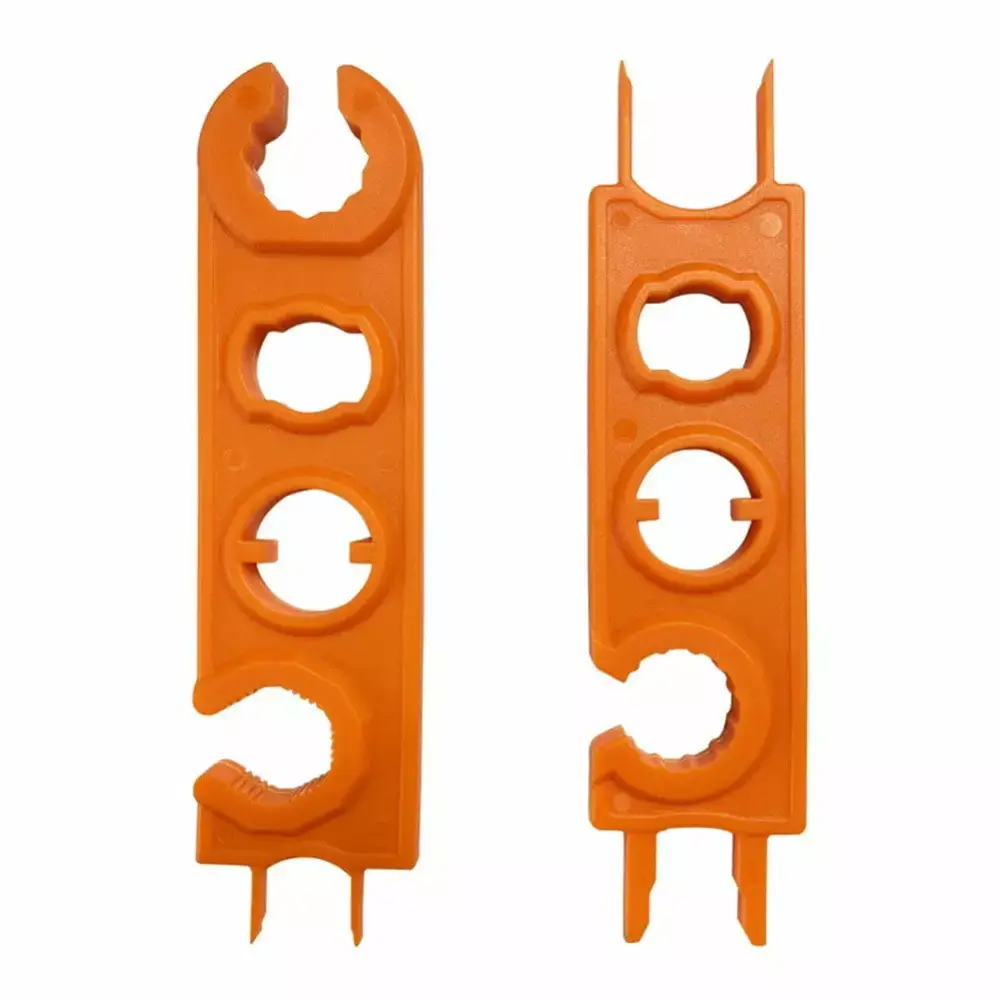

1pair wrench
1*Installation accessories
1*Instruction manual
